KIMT offers a variety of TO-8 header solutions for thermoelectric cooling applications in IR, XRF and other detectors. These headers, typically made of Kovar or nickel- and gold-plated steel, come with 6, 12 or 16 pins to accommodate various wiring needs. The pin configurations include standard cylindrical, flattened or nail-shaped ends for simplified wire bonding.
KIMT offers a wide range of options for mounting thermoelectric coolers on TO-8 headers, supporting coolers with hot side dimensions up to 8.0×8.0 mm. For specific custom requirements do not hesitate to contact our team.
Examples of TO-8 Header Solutions:

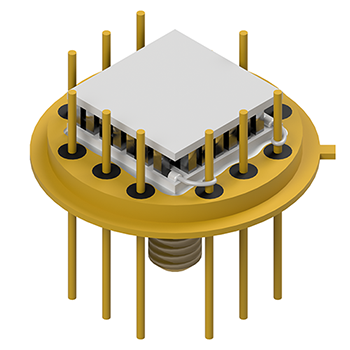

Assembly with single-stage cooler 1MC06-024-15/1

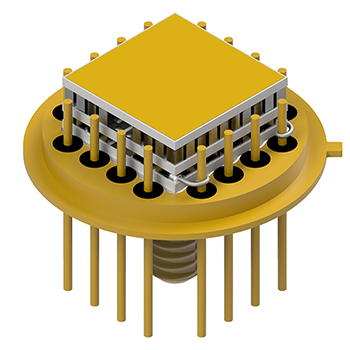

Assembly with two-stage cooler 2MDX06-066-0510

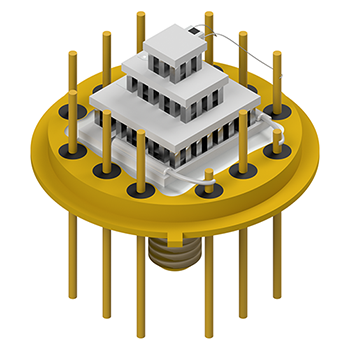

Assembly with three-stage cooler 3MC04-046-12
Assembly with four-stage cooler 4MD04-116-05
