KIMT offers a variety of TO-66 header solutions for thermoelectric cooling applications in IR, XRF and other detectors. These headers, typically made of Kovar or nickel and gold coated steel, come with 6 or 9 pins to accommodate various wiring needs. The pin configurations include standard cylindrical, flattened or nail-shaped ends for simplified wire bonding.
KIMT provides diverse solutions for mounting thermoelectric coolers on TO-66 headers, supporting coolers with hot side dimensions up to 8×8 mm. For specific custom requirements do not hesitate to contact our team.
Examples of TO-66 Header Solutions:

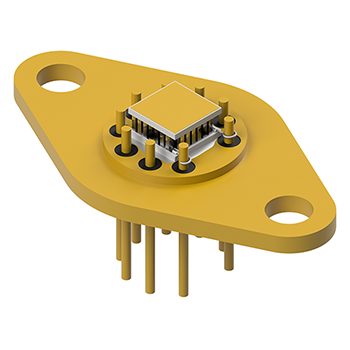

Assembly with single-stage cooler 1MD04-031-15
Assembly with two-stage cooler 2MDX04-044-0510
Assembly with three-stage cooler 3MC04-044-10

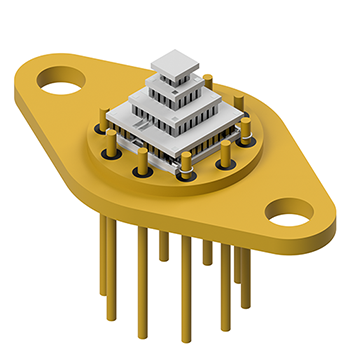

Assembly with four-stage cooler 4MD04-116-10
