KIMT offers a variety of TO-46 header solutions for thermoelectric cooling applications in VCSELs, miniature sensors and other electronic components. These headers, typically made of Kovar or nickel- and gold-plated steel, come with 5 or 6 pins to accommodate various wiring needs. The pin configurations include standard cylindrical, flattened or nail-shaped ends for simplified wire bonding.
KIMT provides diverse solutions for mounting thermoelectric coolers on TO-46 headers, supporting coolers with hot side dimensions up to 1.2×1.9 mm. For specific custom requirements do not hesitate to contact our team.
Examples of TO-46 Header Solutions:

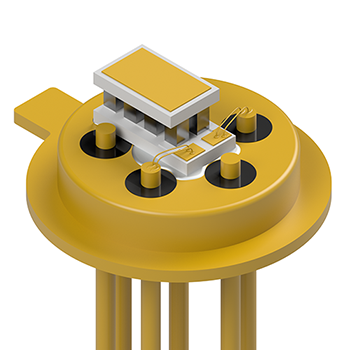

Assembly with single-stage module 1MD03-004-05/1
