KIMT offers a variety of TO-37 header solutions for thermoelectric cooling applications in IR, XRF and other detectors. These headers, typically made of Kovar or nickel and gold coated steel, come with 6 or 9 pins to accommodate various wiring needs. The pin configurations include standard cylindrical, flattened or nail-shaped ends for simplified wire bonding.
KIMT provides diverse solutions for mounting thermoelectric coolers on TO-37 headers, accommodating coolers with hot side dimensions up to 3.2×3.2 mm. For specific custom requirements do not hesitate to contact our team.
Examples of TO-37 Header Solutions:

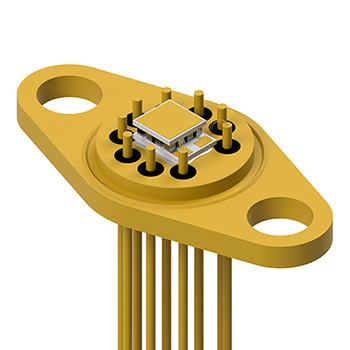

Assembly with single-stage cooler 1MD04-008-05

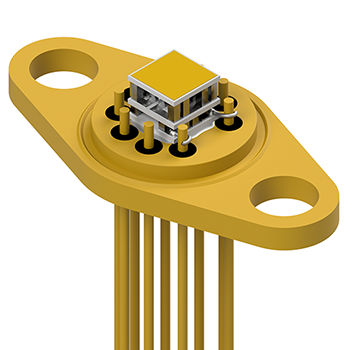

Assembly with two-stage cooler 2MDX04-014-0510
