KIMT offers a variety of TO-13 header solutions for thermoelectric cooling applications in IR, XRF and other detectors. These headers, typically made of Kovar or nickel- and gold-plated steel, come with 6, 12 or 16 pins to accommodate various wiring needs. The pin configurations include standard cylindrical, flattened or nail-shaped ends for simplified wire bonding.
KIMT provides diverse solutions for mounting thermoelectric coolers on TO-13 headers, accommodating coolers with hot side dimensions up to 8.0×8.0 mm. For specific custom requirements do not hesitate to contact our team.
Examples of TO-13 Header Solutions:

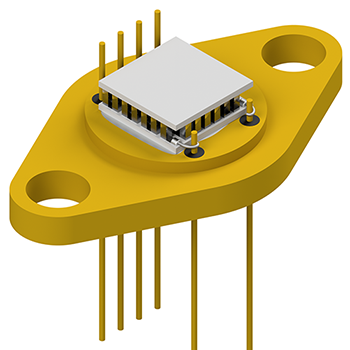

Assembly with single-stage cooler 1MC06-024-15/1

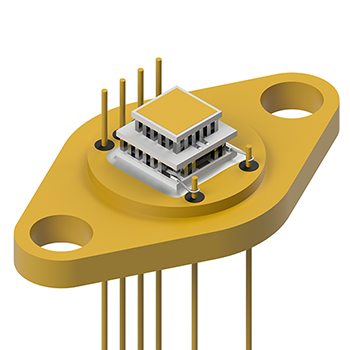

Assembly with two-stage cooler 2MC04-039-12
Assembly with three-stage cooler 3MC06-024-08

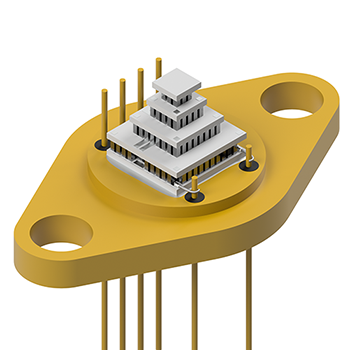

Assembly with four-stage cooler 4MD04-116-10
