TO-8

TO-8 headers are commonly made with Kovar or CRS bases and pins, coated in nickel and gold. KIMT offers thermoelectric sub-assemblies on TO-8 headers, providing options for 6, 12 or 16 pins. These pins come in standard cylindrical, flattened or nailhead forms to simplify wire bonding.

The 8.0×8.0 mm mounting surface is sufficient for many thermoelectric cooler (TEC) types. KIMT supplies various solutions with both single-stage and multi-stage TEC options.

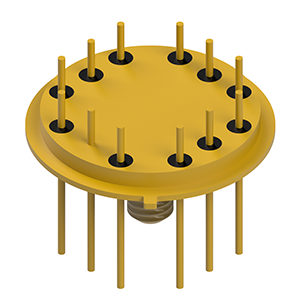

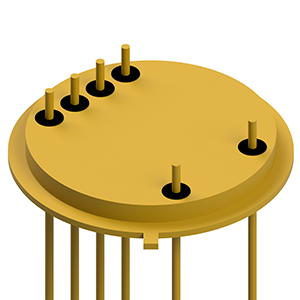

6 pin TO-8	12 pin TO-8

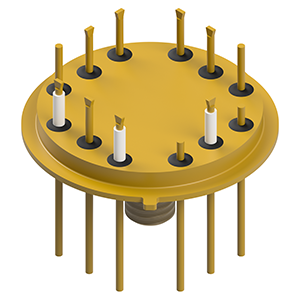

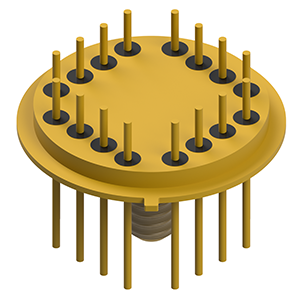

12 pin TO-8 with ceramics sleeves	16 pin TO-8

Key features

• Large Size: Accommodates high-power components (lasers, photodiodes, electronics).
• Hermetic Seal: Ensures long-term reliability in harsh environments.
• Robust Construction: Durable Kovar/CRS for excellent heat dissipation.
• Optical Interface: Glass/ceramic window, lens options for light collimation/focusing.
• Multiple Electrical Pins: Power, signal and TEC control.
• Flexible Integration: Accommodates TECs, heatsinks and drivers.

Applications:

• High-Power Laser Diodes: LiDAR, industrial cutting/welding, telecommunications
• Large-Area Photodiodes: Optical sensing, spectroscopy, imaging
• High-Intensity LEDs: Medical equipment, scientific instrumentation
• Other Optoelectronic Devices: DFB lasers, quantum cascade lasers, superluminescent diodes, X-ray detectors, infrared detectors, avalanche photodiodes
• Thermoelectric Coolers (TECs)
