TO-46

The TO-46 header is a very miniature TO-style package with a small mounting area and higher thermal resistance at the sub-mount base. It is suitable for use with VCSELs, sensors and other miniature electronic devices. Typically, the base and pins of a TO-46 header are made from Kovar and coated with nickel and gold. KIMT provides thermoelectric sub-assemblies on TO-46 headers, configured with either 5 or 6 pins. The mounting surface is typically 1.2×1.9 mm, which is sufficient for miniature thermoelectric coolers (TECs). KIMT offers solutions with miniature single-stage TECs.

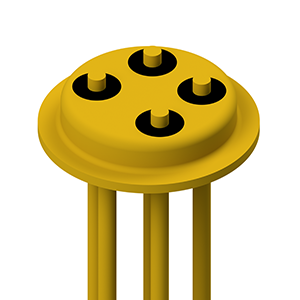

5 pin TO-46 (with ground pin)

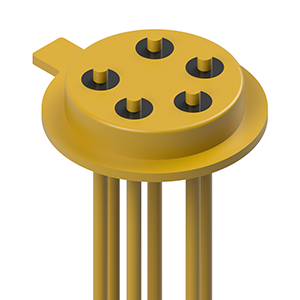

6 pin TO-46 (with ground pin)

Key features

• Ultra-compact: Ideal for space-constrained applications.
• Hermetic Seal: Glass/ceramic header protects against environmental factors.
• Thermal Management: Enables efficient heat dissipation for component longevity.
• Electrical Connections: Three or more pins (anode, cathode, optional control).

Applications:

• Laser diodes in fiber optic communication, laser pointers, barcode scanners and medical devices.
• Photodiodes in light detection and optical sensing of spectroscopy, LIDAR and environmental monitoring.
• High-performance LEDs in illumination, signaling and optical coupling.
• Telecommunications and data communications.
• Sensing and measurement in industrial automation, biomedical instruments and environmental sensors.
