TO-3

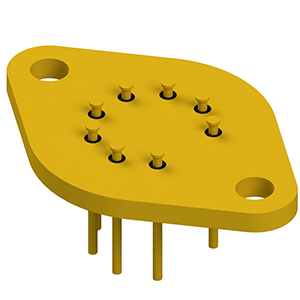

The 8-pin TO-3 header is widely used in high-power laser diode systems, including DFB and DBR lasers. Coupled with a suitable heatsink, the TO-3 header can dissipate several watts of heat. Its 8.0×8.0 mm mounting surface allows for easy integration with various thermoelectric coolers (TECs). Additionally, its good thermal conductivity and simple mounting make it useful for photodetector applications. Typically, these headers are constructed with a CRS base and pins. KIMT offers sub-assemblies (TEC + header) on a universal 8-pin TO-3 type with nail-shaped pins. These standard solutions for laser applications can dissipate up to 10 W of heat from a laser diode (LD).

Key features

• Large Size: Ample space for high-power components and enhanced thermal management.
• Hermetic Metal Seal (Kovar/CRS): Protects internal components from environmental contaminants.
• Efficient Heat Dissipation: Ideal for high-power devices.
• High-Power Capability: Suitable for high-power lasers and LEDs.
• Long-Term Reliability: Robust design ensures stable performance in harsh environments.
• Multiple Electrical Pins: For power, signal and potential control functions.
• Optional Optical Window (Glass/Ceramic): Enables optical signal transmission.

Applications

• High-power laser diodes, used in telecommunications (long-haul optical networks), industrial (material processing) and medical (laser therapy, diagnostics) applications.
• Large-area photodiodes, used in applications like optical sensors, spectrometers and light detection systems.
• High-power LEDs, used in industrial lighting, medical equipment and high-intensity light sources.
• Thermoelectric Coolers (TECs)
